EZTag CE - Feature Manager View

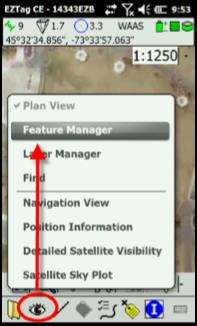

The Feature Manager View, available under EZTag CE View menu (), allows to manage Features.

The Feature Manager dropdown list gives access to different windows:

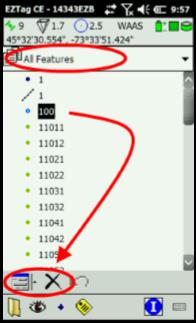

■ All Features: the list of all features collected in the current survey and the ones available in the background maps if the background maps are configured as “selectable” (refer to article Display background Shapefiles or Display background GNSS surveys).

From the list, you can select a feature to Edit or Delete. Background maps features cannot be edited neither deleted. Once a feature is selected, you can go to the Plan View (View > Plan View) to view your selected feature on the map.

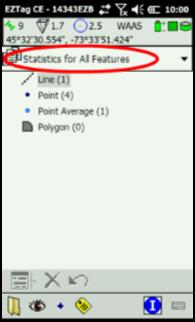

■ Statistics for All Features: displays the number of time each available feature types (configured in the data dictionary) has been collected in the current survey.

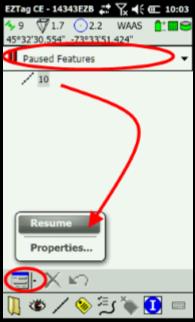

■ Paused Features: list of paused features. From the list, you can select a paused feature to edit its Properties or Resume it.

■ Recycle Bin: list of deleted features. Select a feature to undo the delete.

■ You can filter the list of features rather than using the All Features list.

Each feature types from your data dictionary and from the selectable background maps are listed. Select one feature type to view a filtered list.

From the filtered list, you can select a feature to Edit or Delete. Background maps features cannot be edited neither deleted. Once a feature is selected, you can go to the Plan View (View > Plan View) to view your selected feature on the map.

Article: 000068
