Configure EZTag CE for your BAP-S812A Unit

In EZTag CE, you need to indicate the COM port used by the GNSS receiver and its output format. To correctly read the output data coming from your receiver, it is critical to select the correct GNSS driver.

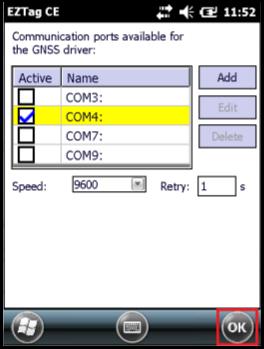

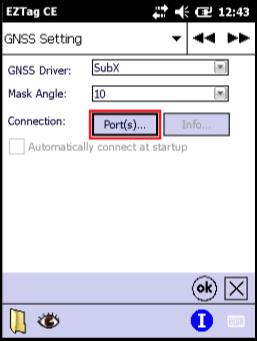

4.       Press Port(s), select COM4 and press ok;

How to select the COM Port and the GNSS Driver in EZTag CE

1.       Start EZTag CE found under the Start menu;

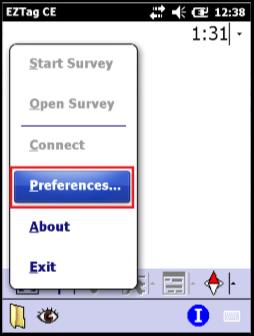

2.       Select File > Preferences;

3.       Using the arrows    or the drop-down list, navigate to the GNSS Setting page;

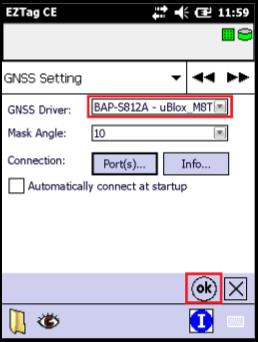

5.       Select the GNSS Driver = BAP-S812A - uBlox_M8T;

6.       Press ok to exit the Preferences menu.
