EZTag CE - Sky Plot View

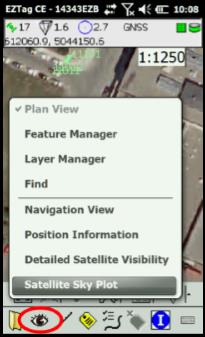

The Satellite Sky Plot is available through EZTag CE View menu.

The sky plot is based on the latest GNSS almanac available in the receiver.

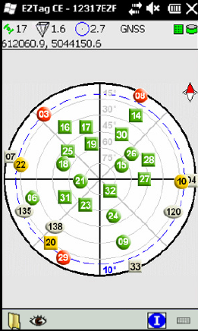

It displays a graphical view of the position of the GNSS satellites in the sky.

The shapes represents the satellite constellation:

■ Circle: a GPS satellite;

■ Square: a GLONASS satellite;

■ Ellipse: a SBAS satellite.

The colors represents the satellite status:

■ Green: above the mask angle and used to compute the solution;

■ Red: below the mask angle or not used to compute the solution;

■ Yellow: 5° above the mask angle and used to compute the solution;

■ Grey : inactive, unusable or not visible.

The dotted blue line and the angle written in blue represents the mask angle configured with File > Preferences > GNSS Settings.
